09 September 2013

Wings/Lighting: Landing lights ordered.

Go here to see the wiring of these lights into my airframe.

Decided to indeed go with a pair of the AveoMaxx Hercules 30.  Sure, they'll probably be cheaper later when I'm ready to fly, but they'll be easier to fit with the wing lacking the tips and bottom skins.  Incidentally, if you're considering these lights too, contact the company directly.  They may be able to get you a much better price than the distributors.  Shipped, the pair were $1,795.50.

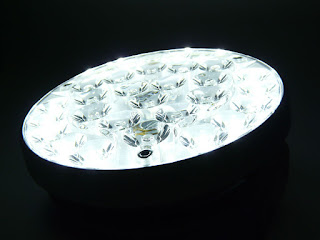

AveoMaxx HERCULES H30
P/N: AVE-H30MWSSNH-00A

Technical Information
1. Number of LED: 30
2. Input voltage: +9..+36 VDC
3. Output power [Hi/Low]: 45/21W Taxi, 68/33W Landing, 113W/54W Taxi+Landing
4. Voltage protection: 80V, both polarities
5. Under-voltage lockout: 8.5V , not more
6. Over-voltage lockout: 37V, not less
7. Ambient temperature: -40C..+85C
8. Function description:
  • a. 1x12 LEDs - Taxi, steady light
  • b. 2x9 LEDs - Landing, steady light
  • c. 1x12 + 2x9 - Taxi+Landing
  • d. Synchro Mastrer function, active – low
  • e. Wig-Wag – Taxi LEDs only
  • f. Master/Slave select sequential and simultaneous Wig-Wag mode
  • g. High/Low power select for Landing and Taxi.
9. Beam Pattern:
  • a. 100 Vert 100 Horizont – Landing
  • b. 100 Vert 100 Horizont – Taxi
10. Light Intensity (calculated):
  • a. 104.000 cd - Landing Hi
  • b. 56.000 cd - Landing Lo
  • c. 62.000 cd - Taxi Hi
  • d. 32.000 cd - Taxi Lo
  • e. 166.000 cd - Landing + Taxi Hi
  • f. 88.000 cd - Landing + Taxi Lo
11. Color and shade: cool white, 5000K – White
12. Programmable Soft-Start, less than 50mS
13. Overheat protection, temperature dependent decrement intensity
14. Weight: less than 1.08lbs (490 g) with Aveo bracket
15. Useful life: not less than 30.000,0 aircraft flight hours.
16. Dimension: 4.33” Round x 1.79” (D = 110mm, H = 45.7mm).
17. Material:
  • a. Housing/Heatsink: Aluminum Alloy, natural anodizing
  • b. Lens: Clear Polycarbonate
